120 V 60 Hz precision AVR for North America

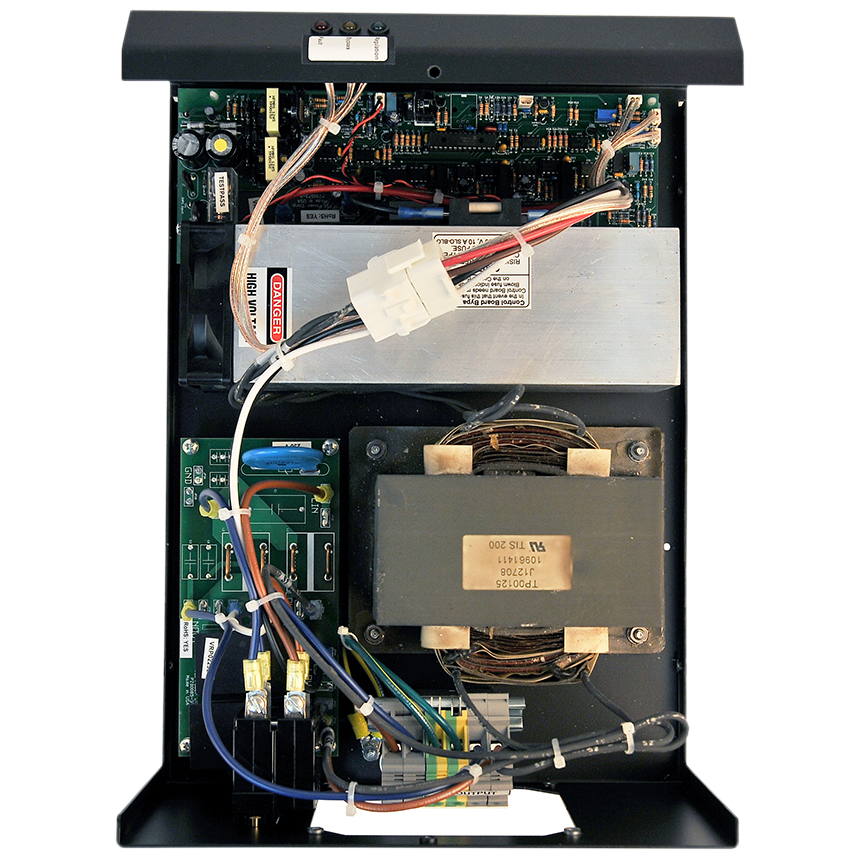

120 V VRP units for the US, Canada, and Caribbean are available in standard sizes from 1,400 to 9,600 VA and with any desired electrical connectors.  Units may also be configured for 100 V output for the Japanese market as well as 127 V for Mexico. The control PCB assembly is connectorized for easy replacement.

Part Number Voltage Power Frequency Circuit Breaker Input Output Dimensions Weight
VRP-1400-311B
120 V
1440 VA
60 Hz
15 A
NEMA 5-15P
4x NEMA 5-15R
12" W x 6.2" H x 15" D
28 lbs
VRP-1400-322B
120 V
1440 VA
60 Hz
15 A
NEMA L5-15P
NEMA L5-15R
12" W x 6.2" H x 15" D
28 lbs
VRP-1400-333B
120 V
1440 VA
60 Hz
15 A
IEC 60320 C14
IEC 60320 C13
12" W x 6.2" H x 15" D
28 lbs
VRP-1900-300B
120 V
1920 VA
60 Hz
20 A
Hard-wired
Hard-wired
12" W x 6.2" H x 15" D
28 lbs
VRP-1900-311B
120 V
1920 VA
60 Hz
20 A
NEMA L5-20P
4x NEMA 5-20R
12" W x 6.2" H x 15" D
28 lbs
VRP-1900-322B
120 V
1920 VA
60 Hz
20 A
NEMA L5-20P
NEMA L5-20R
12" W x 6.2" H x 15" D
28 lbs
VRP-1900-333B
120 V
1920 VA
60 Hz
20 A
IEC 60320 C20
IEC 60320 C19
12" W x 6.2" H x 15" D
28 lbs
VRP-2900-300B
120 V
2880 VA
60 Hz
30 A
Hard-wired
Hard-wired
12" W x 6.2" H x 15" D
40 lbs
VRP-2900-311B
120 V
2880 VA
60 Hz
30 A
NEMA 5-30P
NEMA 5-30R
12" W x 6.2" H x 15" D
40 lbs
VRP-2900-322B
120 V
2880 VA
60 Hz
30 A
NEMA L5-30P
NEMA L5-30R
12" W x 6.2" H x 15" D
40 lbs
VRP-4800-300B
120 V
4800 VA
60 Hz
50 A
Hard-wired
Hard-wired
12" W x 6.2" H x 15" D
50 lbs
VRP-4800-311B
120 V
4800 VA
60 Hz
50 A
NEMA 5-50P
NEMA 5-50P
12" W x 6.2" H x 15" D
50 lbs
VRP-7700-300B
120 V
7680 VA
60 Hz
80 A
Hard-wired
Hard-wired
14.5" W x 8.9" H x 19.7" D
90 lbs
VRP-9600-300B
120 V
9600 VA
60 Hz
100 A
Hard-wired
Hard-wired
14.5" W x 8.9" H x 19.7" D
95 lbs
